Capacitance question bank (Physics)

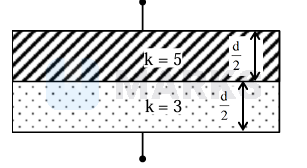

Space between the plates of a parallel plate capacitor of plate area $4 \mathrm{~cm}^2$ and separation of (d) 1.77 mm, is filled with uniform dielectric materials with dielectric constants (3 and 5) as shown in figure. Another capacitor of capacitance 7.5 pF is connected in parallel with it. The effective capacitance of this combination is ________ pF. $\left(\right.$ Given $\left.\varepsilon_0=8.85 \times 10^{-12} \mathrm{~F} / \mathrm{m}\right)$

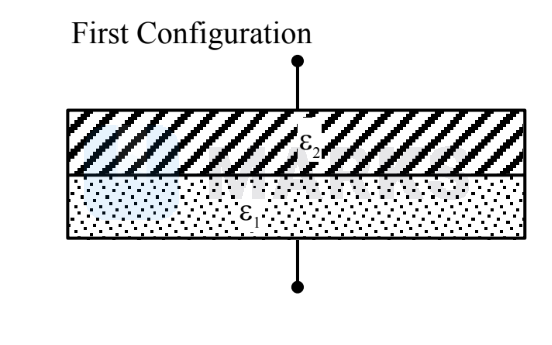

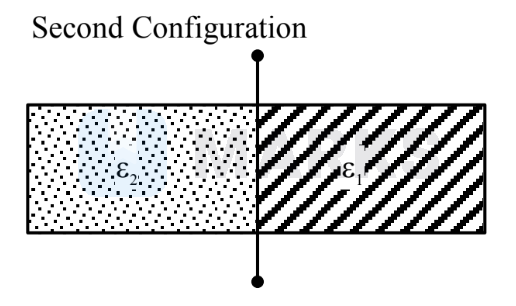

A parallel plate capacitor is filled equally (half) with two dielectrics of dielectric constant $\varepsilon_1$ and $\varepsilon_2$, as shown in figures. The distance between the plates is d and area of each plate is A. If capacitance in first configuration and second configuration are $C_1$ and $C_2$ respectively, then $\frac{C_1}{C_2}$ is :
